Discover the Heron Capestander from Italwinch: 1700W of power for effortless docking. Ideal for any boat with up to 1700kg pulling power. Durable, safe and user-friendly. Order now! Read more.
Discover the unmatched elegance and robust performance of the AISI 316 stainless steel capstan, ideal for boats up to 23 metres. With a variety of drive options including 12V, 24V, 230V, 400V, or hydraulic, this capstan offers durability and style. Whether you are on the high seas or anchored in a calm bay, this Capstan anchor winch guarantees a secure location.
| No. | HE1700.24D |
|---|---|
| Brand | Italwinch |
| Series | Heron |
| EAN code | 8720193033952 |

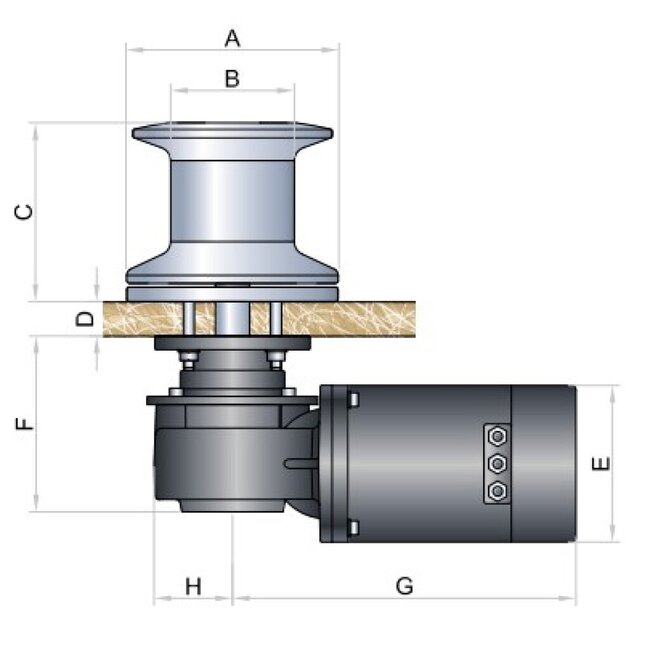

| Dimensions | |
| A (mm) | 156 |
| B (mm) | 120 |
| C (mm) | 120 |
| D (mm) | 37-62 |
| E (mm) | 114 |
| F (mm) | 150 |
| G (mm) | 330 |
| H (mm) | 80 |
| Suitable for | Ships up to 23m |
| Material | STAINLESS STEEL (AISI 316) |
| Max. load | 1650 kg |
| Current (A) | 185 A |
| Voltage type | VDC |
| Power (W) | 1700 W |
| Voltage (V) | 12 V |
| Workload (kg) | 220 kg |
| Hoisting speed | 26 mtr/min |
| Type of execution | Electric |
This overview gives a clear indication of capstan specifications, helping you make an informed choice for your marine needs.
