Zipwake Dynamic Trim Control System Series 450S
The Zipwake Dynamic Trim Control System Series 450S offers a superior solution for stabilising boats up to 15.5 metres (50 ft.), with maximum speeds of up to 110 km/h. This advanced system includes a pair of fast-acting 450 mm straight interceptors, perfectly suited to the dynamic trim requirements of modern boats.
Functionalities:
- Improved stability: Reduces tendency to roll and optimises trim angle for improved sailing performance and fuel savings.
- Navigation technology: Features integrated GPS, Gyro and 3D accelerometer that are continuously active for best performance.
- Connectivity: Compatible with NMEA 2000 networks for seamless integration with existing vessel systems.
- Capacity: Ability to connect up to six interceptors for extensive customisation options.
- Ease of use: Fully automatic system, available in different sizes and designs.
- Installation: Complete package with all necessary parts for installation, including updates via the Zipwake website.
- Extras: Option for an additional GPS antenna.

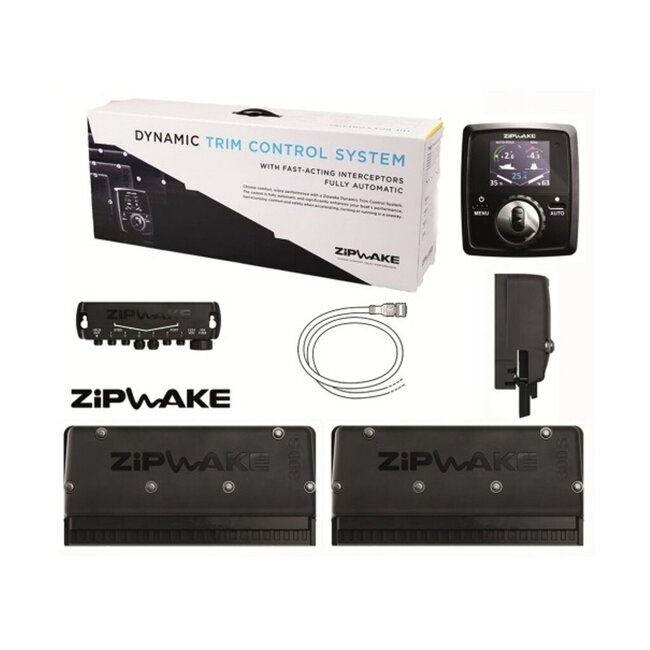

Zipwake Kit Box
The kit box is an all-in-one package for installing the system, including a pair of fast-acting straight interceptors, a control panel, distribution unit, inceptor and an extension cable. This kit supports expansions of up to six interceptors without the need for additional connectors or power supply.
Technical Specifications:
| Specification |
Value |
| Product code |
2011146 |
| EAN code |
8720193029320 |
| Sales unit |
1 Piece |
| Operating temperature |
0° / +40°C |
| Protection class |
IP68 (5 metres) |
| Brand |
Zipwake |
| Approval |
CE, FCC |
| Colour |
Black |
| Material |
Plastic |
| Product width |
450 mm |
| Product depth |
56 mm |
| Product height |
115 mm |
| Series |
Series S |
| Voltage type |
VDC |
| Voltage |
12 V / 24 V |
